DIAPHRAGM VALVE

CHENNAI

Features of DIAPHRAGM VALVE-G series

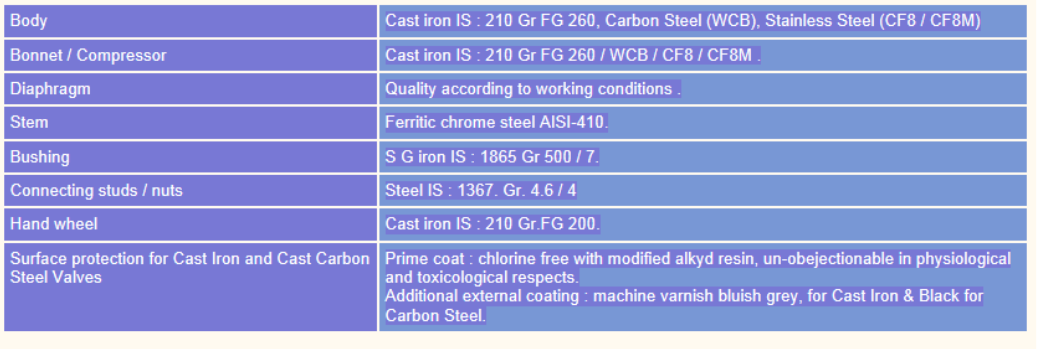

Materials of G series diaphragm valve

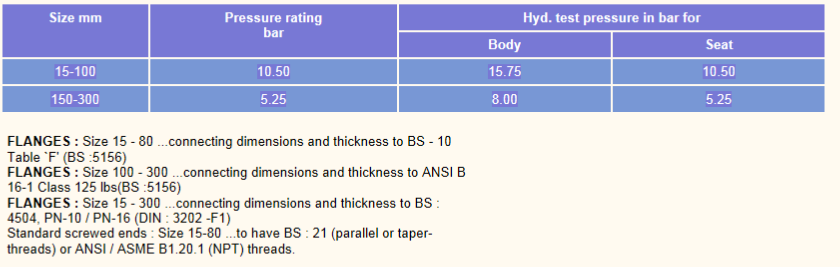

Range of Application

G series diaphragm valve

G SERIES

Straight Through Pattern, to BS:5156, DIN:3202-F1
of cast iron, cast carbon steel, cast stainless steel, other alloys also rubber-lined cast iron or cast carbon steel (only Flanged)

Straight pattern, without stuffing-box, absolutely leak tight with rising stem and non-rising handwheel. The valve is closed by turning the handwheel in clock wise direction. The travel stop is also serving as indicating device. Diaphragm can be replaced without removing the valve from the pipeline.

S SERIES

Weir type - Straight Pattern, to BS : 5156, DIN : 3202-F1of cast iron, cast carbon steel, cast stainless steel, other alloys also rubber-lined cast iron or cast carbon steel (only Flanged)

Straight pattern, without stuffing-box, absolutely leak tight with rising stem and non-rising handwheel. The valve is closed by turning the handwheel in clock wise direction. The travel stop is also serving as indicating device. Diaphragm can be replaced without removing the valve from the pipeline.

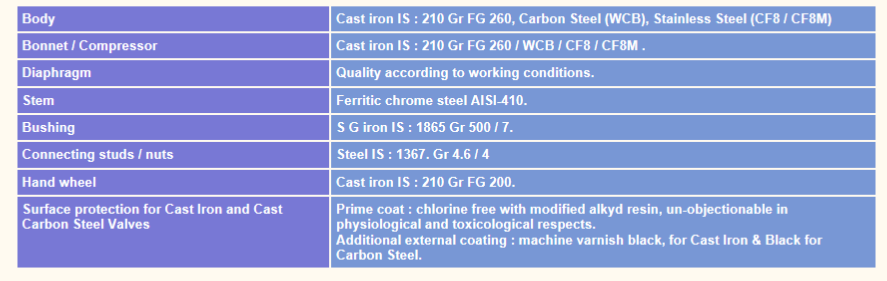

Materials of S series diaphragm valve

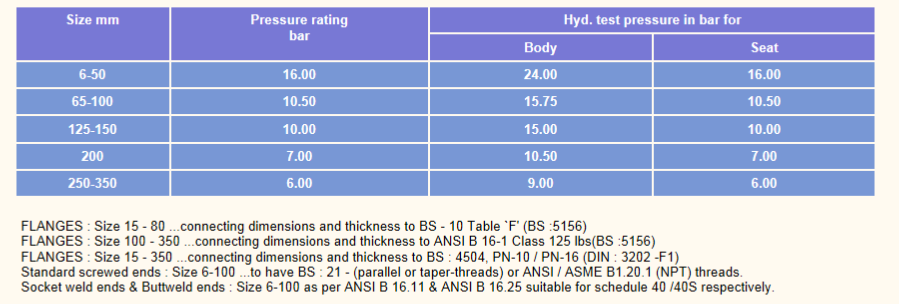

Range of  Application S series diaphragm valve

Features

of DIAPHRAGM VALVE-S series

Ball valves, gate valves, globe valves, swing check valves, forged steel globe valves, diaphragm valve, gun metal valves
