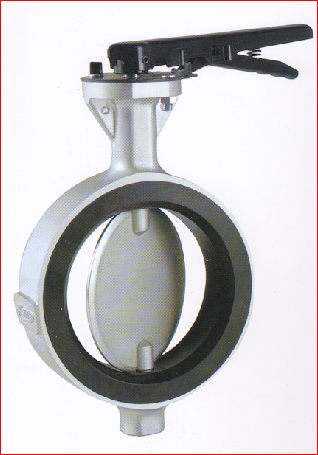

BUTTERFLY VALVE

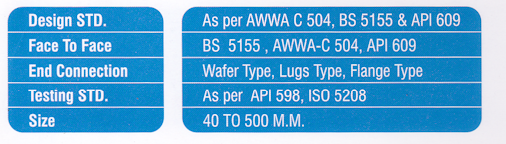

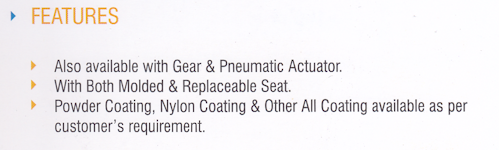

Features of Butterfly Valves

Materials of Butterfly Valves

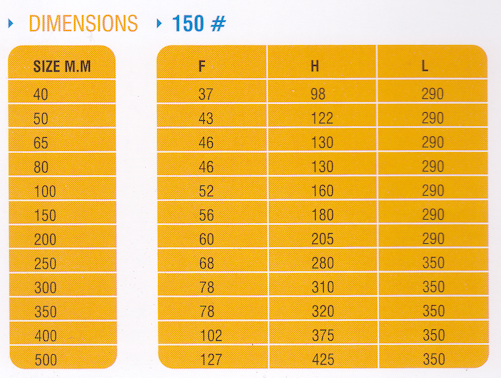

Dimensions of Butterfly Valves

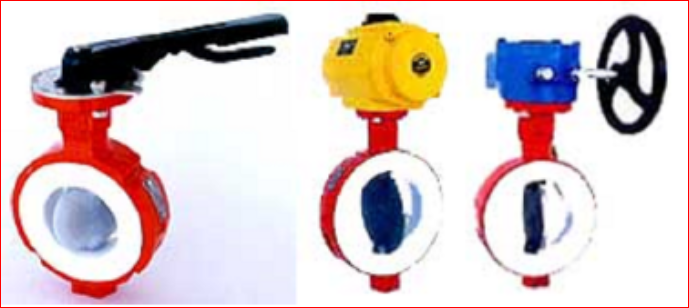

BUTTERFLY VALVE-GK 12

Wafer Style, face to face as per BS : 5155, ISO-5752, API-609,
MSS-SP-67
of cast carbon steel & higher alloys with PTFE internals.

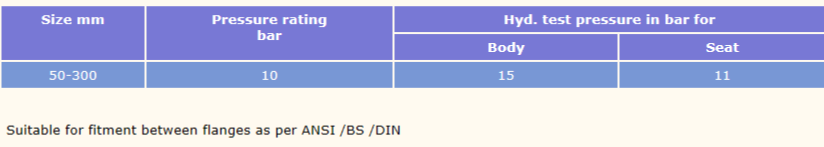

Range of application Butterfly Valves GK12

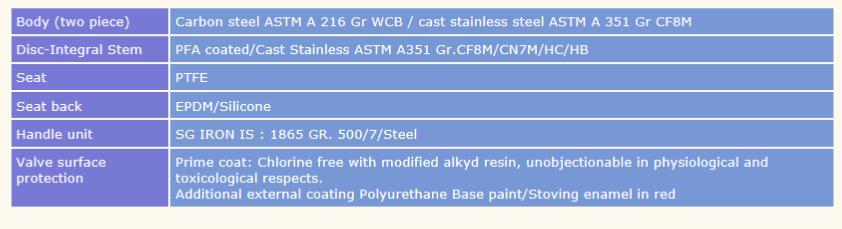

Material

Butterfly Valves GK12

Features

Heavy weight, bubble tight, one piece disc & stem, PTFE stem bearing resulting in self lubrication and low torque. Sleeve type PTFE seat and PFA coated disc. Valves can handle highly corrosive liquids, gases, slurries etc. Valves with most advanced features that provide the ultimate in dependable economical flow control.

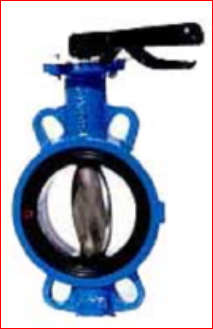

BUTTERFLY VALVE-GK 12/12L

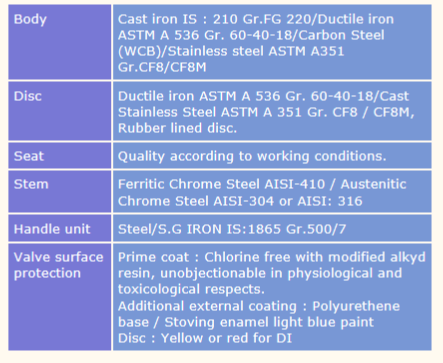

materials-butterfly-valves-gk12L-chennai

Features

Heavy weight, bubble tight, positive disc drive, grease reservoir resulting in low torque. The seat is replaceable, moulded rubber seat with a two piece back up of hard phenolic. Valves with most advanced features that provide the ultimate in dependable, economical, flow control.

Wafer Style, face to face as per BS : 5155, ISO-5752, API-609, MSS-SP-67
of cast iron, ductile iron or cast carbon steel .
